🟥 Digital
What is Digital?
Digital signals are either ON or OFF—like a light switch.
Digital sensors detect clear changes (like pressing a button), while digital outputs perform actions (like turning on a light or sound).
Included Modules:
🔌 Inputs:
💡 Outputs:

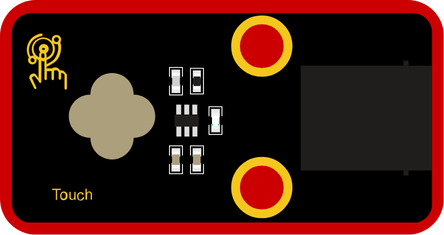

Module 01: Touch Sensor
Block:
This sensor detects when it is touched. It sends an ON signal when touched and OFF when released.
Module 02: Button Input
Block:
This sensor detects when the button is pressed. It sends an ON signal while the button is held down.
Module 03: Photo Interrupter
Block:
This sensor detects if something passes between its light beam. It is commonly used to count or detect movement.
Module 04: Tilt Switch
Block:
This sensor detects tilt or angle changes. It sends an ON signal when tilted beyond a certain point.

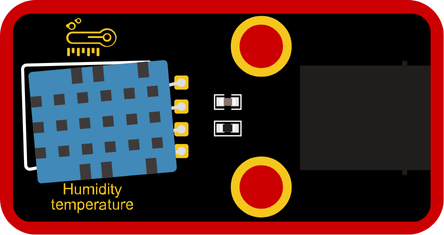

Module 05: Temp & Humidity
Block 1:
This block reads the temperature from the environment.
Block 2:
This block reads the humidity (moisture in the air).

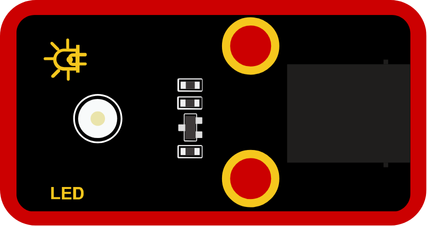

Module 06: LED
Block 1:
This block turns the LED ON or OFF using a true/false value.
Block 2:
This block adjusts the LED brightness by entering a value between 0 and 1023.

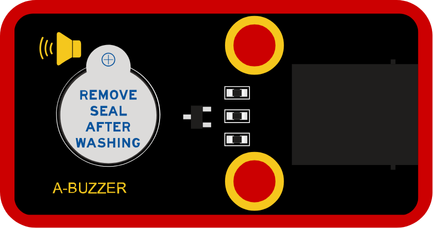

Module 07: Buzzer
Block 1:
This block turns the buzzer ON or OFF using a true/false value.
Block 2:
This block changes the buzzer’s sound level using a value between 0 and 1023.
Module 08: Relay
Block:
This block controls the relay like a switch—ON or OFF—allowing you to turn other devices on or off through the relay.
