docs/readme.md

Joystick Connections To Master

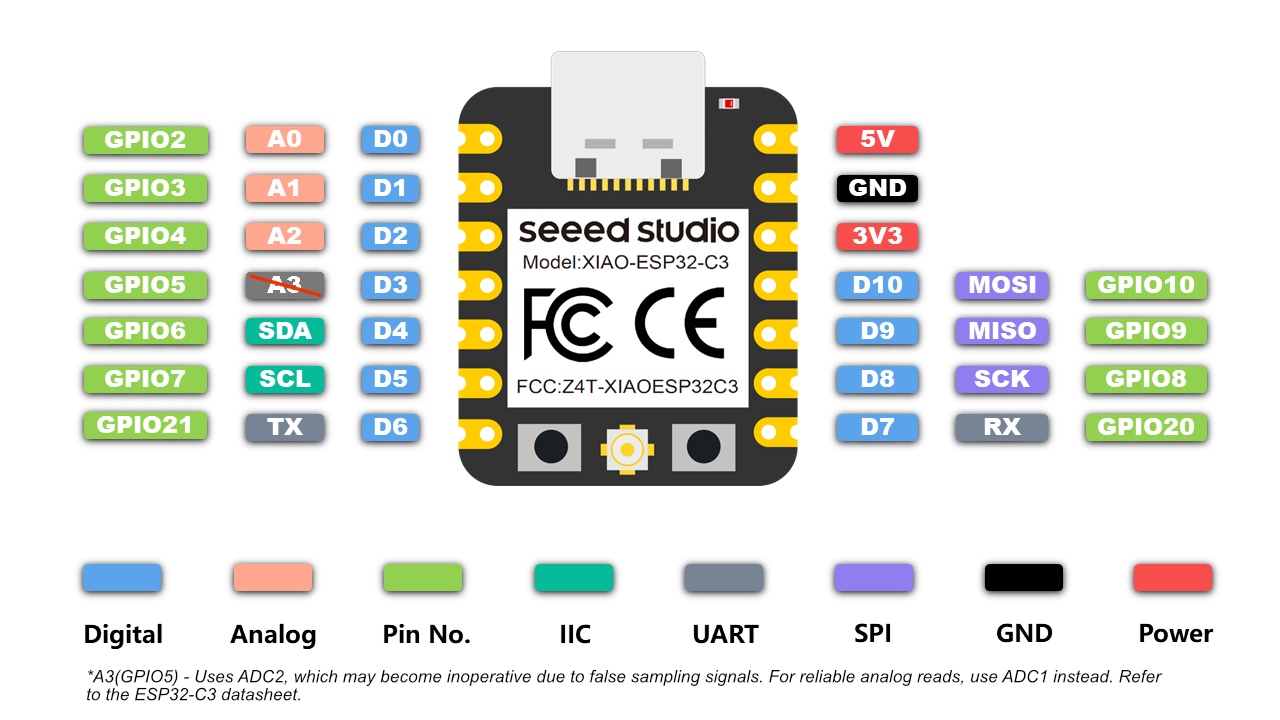

ESP32C3 (Master) Connection

ESP32S3 Pinout

    SDA_PIN = 7
    SCL_PIN = 6

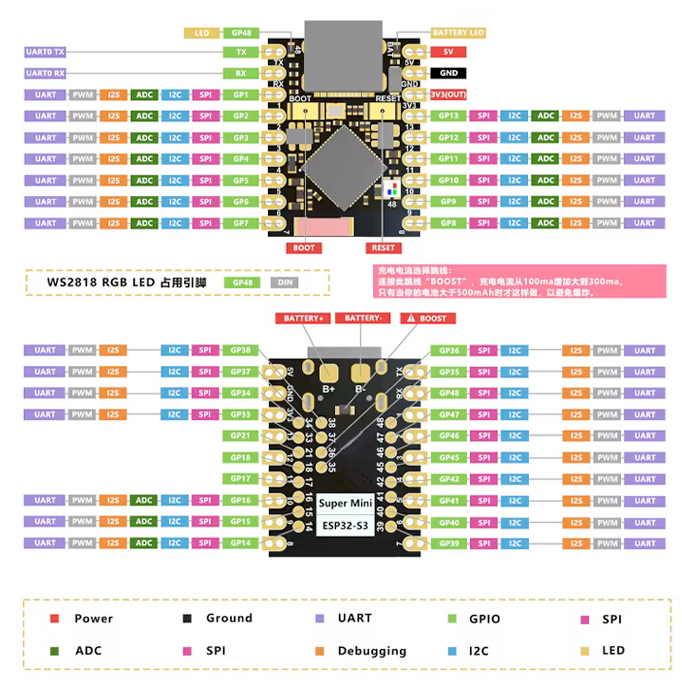

ESP32S3 (Slaves) Connection

ESP32S3 Pinout

    // Red Joystic
    DIV_ADD = 0x10
    SDA_PIN = 5
    SCL_PIN = 4

    // Blue Joystic
    DIV_ADD = 0x20
    SDA_PIN = 5
    SCL_PIN = 4
